81300A1H Over edging chain lock sewing machine

Release time2015/8/29 16:04:23
Author
Product Click
Reference priceNot pricing

Product details

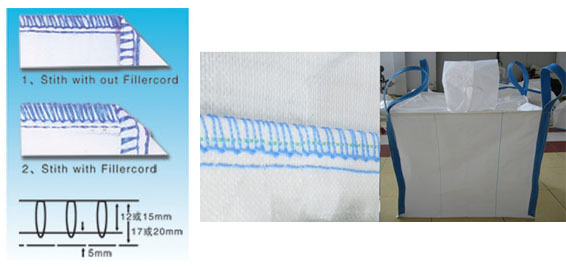

Features: applied to pocket sewing of PP outer woven bags. This sewing machine combines chain stitch with over edging stitch .It adopts double-needle , plane feed mechanism with upper feeding ,plane table and safe four -thread stitch. It is also applicable for polypropylene outer woven bad with larger stitch thickness.

Technical parameters:

model	81300A1H
Seam width overall	20mm
Maximum speed	1400 r.p.m
Net weight	52Kg
Stitch range	6-12mm
Need type and size	UY9853G 430
Sewing capacity	22mm
Electric motor power	550w
Needle clearance	5mm
Max. over edging width	15mm
