Heavy duty thick flat bed sewing machine

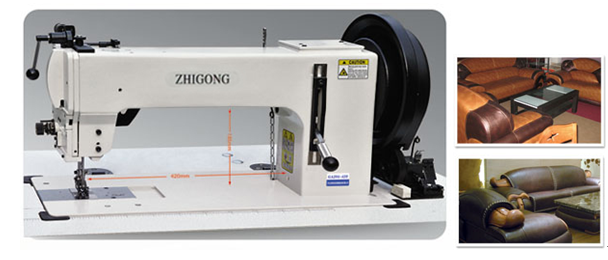

GA204-420 Sewing Machine for Extra-thick Material with Comprehensive Feeding

Release time2015/9/1 17:21:02
Author
Product Click
Reference priceNot pricing

Product details

Characteristics:
High top feed stroke,excellent climbing properties and high needle pens-t ration power guarantee the problematical sewing over cross seams or thick spots in the work piece.Optimized sewing kinematics for tight and excellent stitch formation.Powerful and effective alternating feeding system for constant stitch Len.The GA204 class sewing machine with large barrel shuttle has been specially designed for processing the extreme thread and material thicknesses of heavyweight materials.Seams of leather goods,the manufacturing of technical textiles and special sewing tasks when processing leather products and upholstery,are among the extensive range of applications of the 204.

Model	GA204-370
Max.sewing speed	800 r.m.p
Stitch length	0-12mm
Presser foot lift	20mm
Needle size	DY×3 160#~230#
Shuttle hook	KSP-204N
Lubrication mode	Manual
Motor	550W 4P
Operating space	420mm*185
