Electronic Pattern Sewing Machine For Extra-thick Material

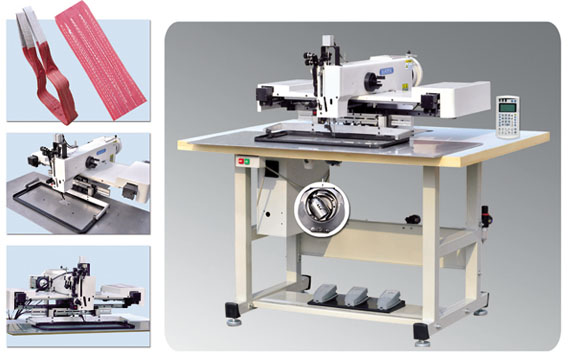

ZQ204-109(5020) Electronic Pattern Sewing Machine For Extra-thick Material

Release time2015/9/11 16:41:01
Author
Product Click
Reference priceNot pricing

Product details

Characteristics:
This machine is special design for obtaining reinforcing seam on extremely heavy duty materials by using very thick thread. It adopts Thread take-up acmes and large shuttle hook, which are good for sewing super heavy material. The large sewing area allows it to be a versatile electronic patter industrial sewing machine for use in many different sections of the clothing and textile industry.

Technical parameters:

Model	GA204-109(5020)
Allowable sewing range	Direction X:max 500mm,direction Y:max 200mm
Highest rotating speed	800 r.m.p
Speed setting	Arbitrary setting 100-700r.p.m
Needle bar stroke	56mm
Presser plate lifting	Outer presser plate 22mm
Needle size	DY×3
Trimming mode	Electrical heating
Shuttle	KSP-204N
X-Y Driving mechanism	Stepping closed-loop motor,synchronous belt,linear guide driving interval and continuous switching mode
