Heavy duty cylinder bed sewing machine

GA246 Cylindrical bed compound feed lock stitch sewing machine

Release time2015/8/29 17:03:43
Author
Product Click
Reference priceNot pricing

Product details

JK-246 （ellipse delivers the cloth）

JK-246V （ level delivers the cloth）

JK-246A （ellipse delivers the cloth & auto-lubricated ）

Features:

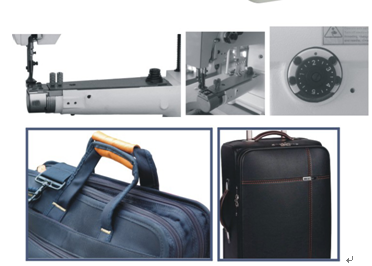

This model is designed with small radius cylinder bed, compound feed mechanism and synchronized binder. It features a novel appearance, easy sewing operations, nice and even stitches and high productivity. With the small radius tubular bed, it is available in binding operation for leather garment, case& bag, shoes, seat cushion etc..

Model	JK-246	JK-246V	JK-246A
Max. sewing speed	2200S.P.M
Stitch length	0-6MM
Needle bar stroke	38MM
Presser foot lift	（By hand） 9MM (By knee) 15MM
Needle type	DP*17 16#-21#
Stitch length	0-6MM
Feeding method	Ellipse delivers the cloth	Level delivers the cloth	Ellipse delivers the cloth
Presser foot alternation	2.3-4.8MM
Bed size in diameter	50MM
Binder device		Yes
Rotating hook	Vertical auto lubrication two times hook
Lubrication	Manual lubricated		Auto lubricated
Motor	370W Clutch motor
