Heavy duty zigzag sewing machine

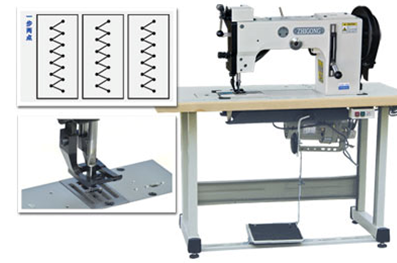

GA204-104A Two points zigzag sewing machine with upper and lower Complex Feeding for thick materials

GA204-104A Two points zigzag sewing machine with upper and lower Complex Feeding for thick materials
  • Release time2015/9/2 16:05:30
  • Author
  • Product Click
  • Reference priceNot pricing

Product details

Characteristics;
The new design could realize zigzag sewing at many points.It adopts semi rotative large oscillating shuttle, which could reduce the times of changing bobbin and realize sewing for thick thread, thick material and decorating sewing.It is suitable for zigzag sewing, both cut sewing and decorating sewing of sofa, cushion and leather products.


 Parameters：

Model

GA204-104A

Max.sewing speed

800 r.m.p

Stitch length

10mm

Presser foot lift

By hand

10mm

By knee

15mm

Width of between needle point   tracers

0-16 mm

Needle size

DY×3

Shuttle hook

KSP-204N

Lubrication mode

Manual

Motor

550W  4P
